Todos los precios mostrados excluyen el IVA y los gastos de envío.
Disponibilidad:
Disponible: 1 - 3 días
,
Plazo de entrega: 1 - 3 semanas.
,
Solicitud de pedido especial

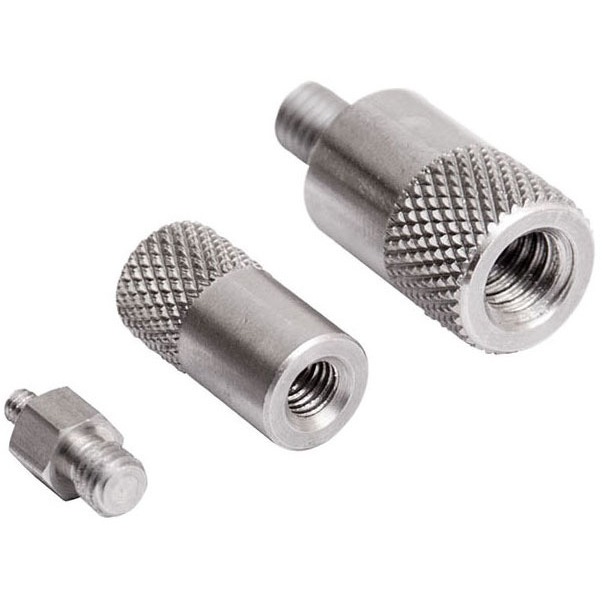

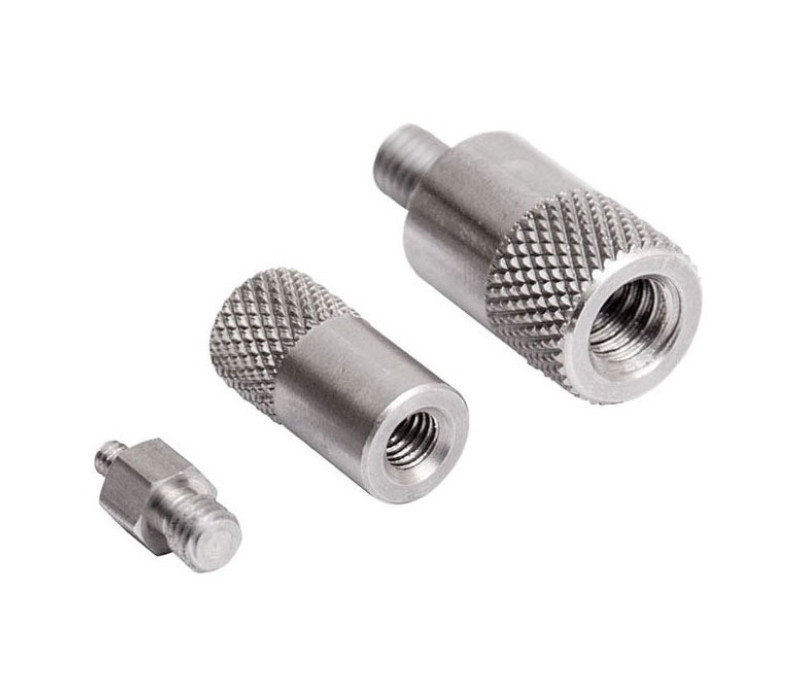

G Series Adaptadores de rosca y acoplamientos

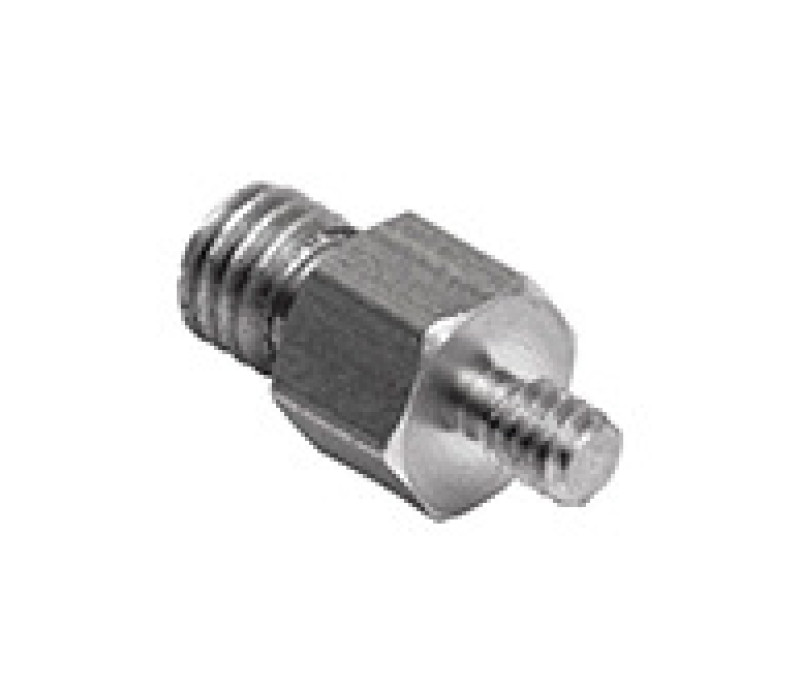

G1051 / 4-40M - 10-32M

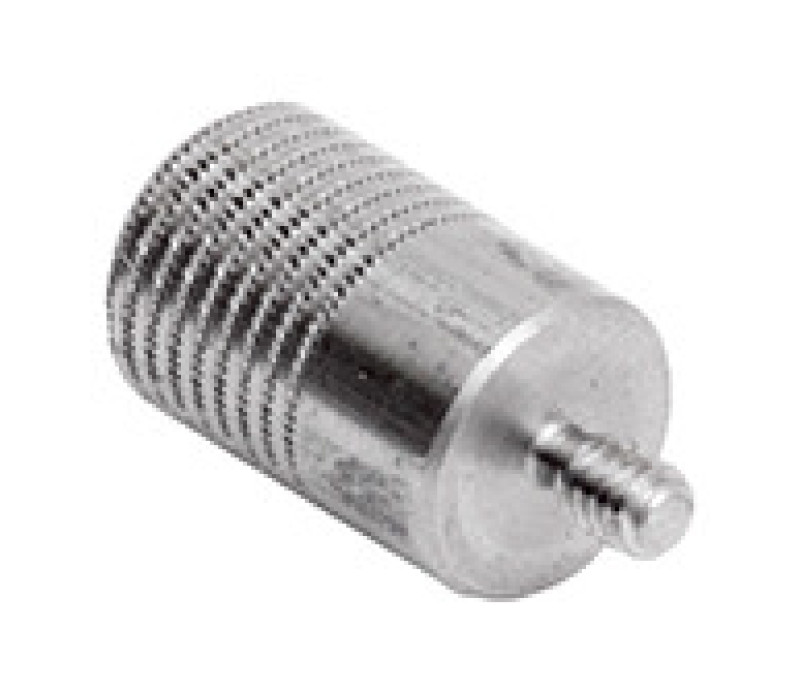

G1050 / 10-32F - 4-40M

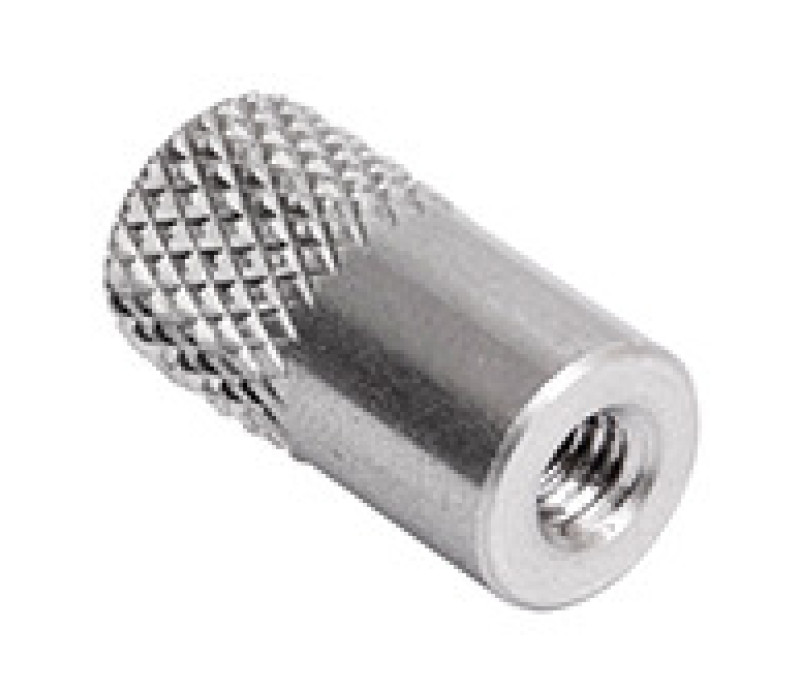

G1039 / 10-32F - 10-32F

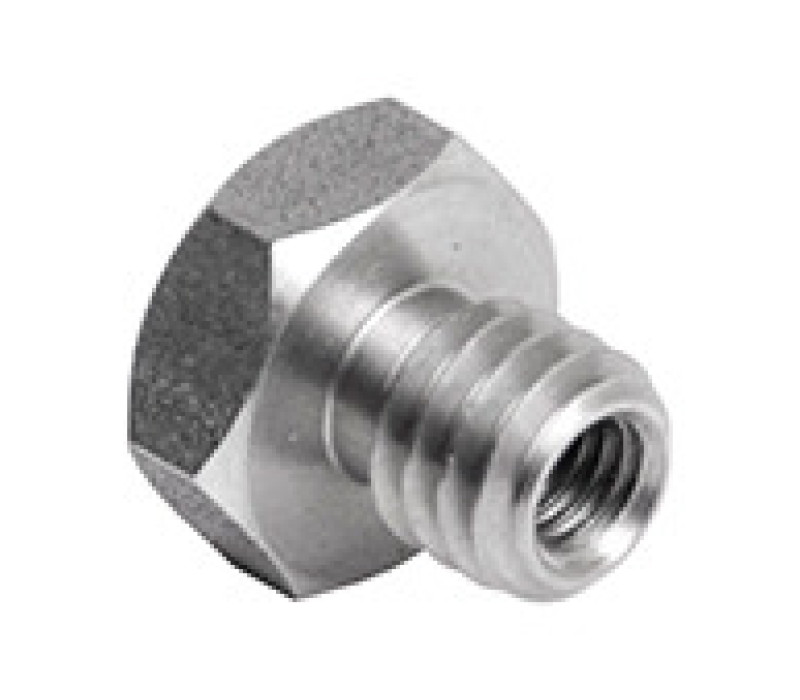

G1030 / 10-32F - 5/16-18M

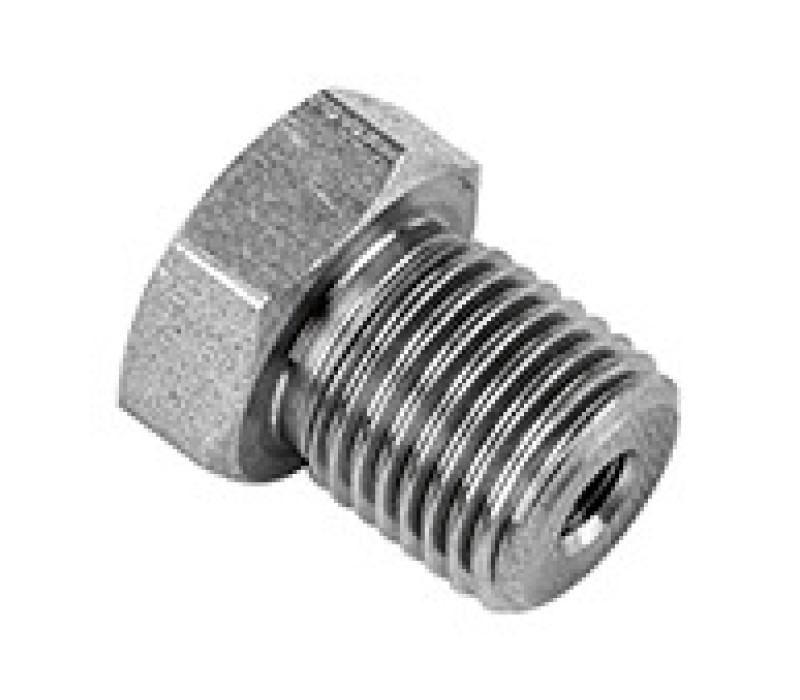

G1067 / 10-32F - 1/2-20M

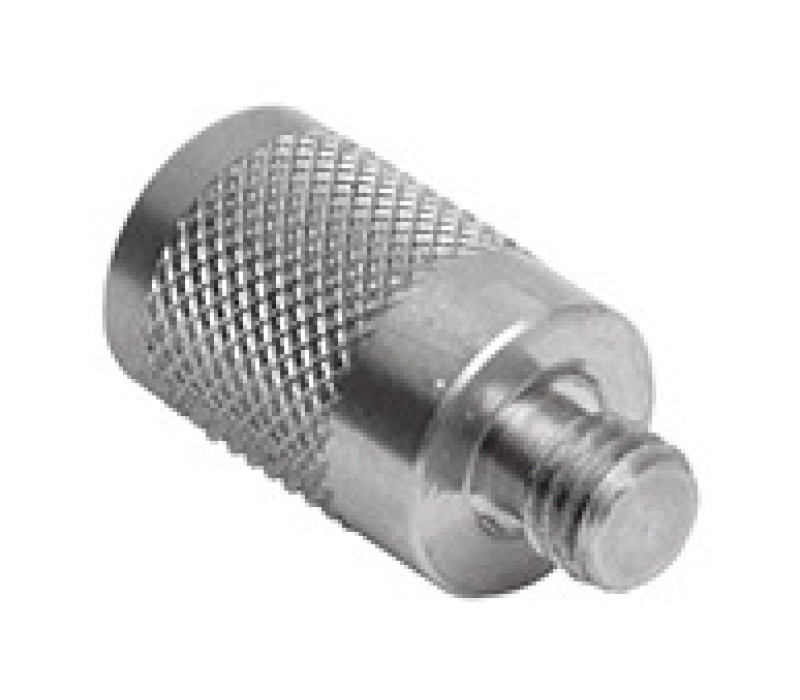

G1048 / 10-32F - M4M

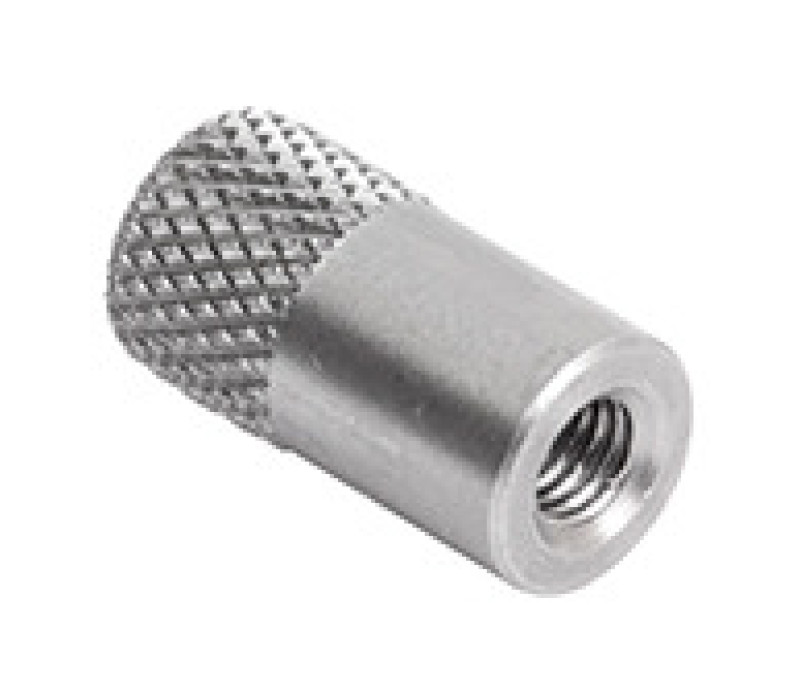

G1057 / 10-32F - M6F

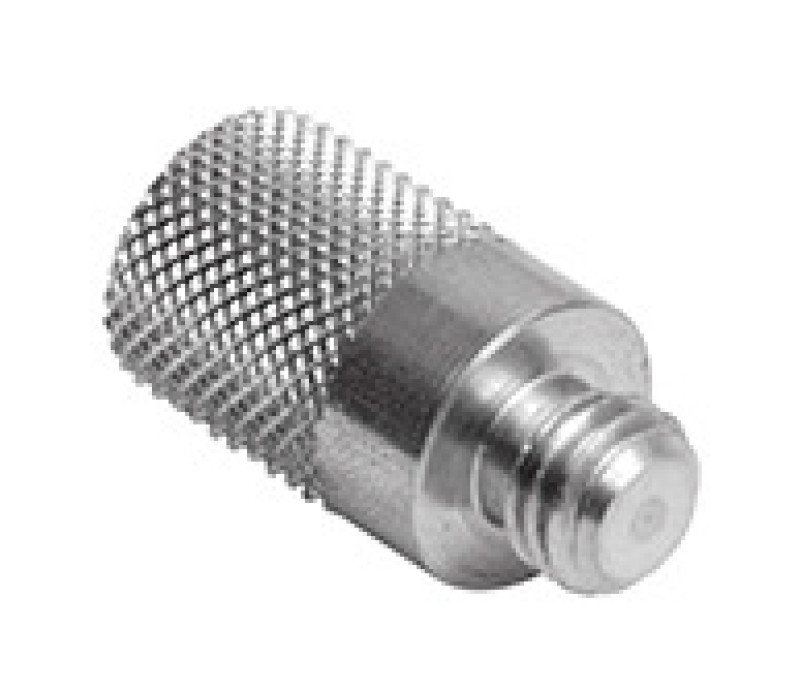

G1054 / 10-32F - M6M

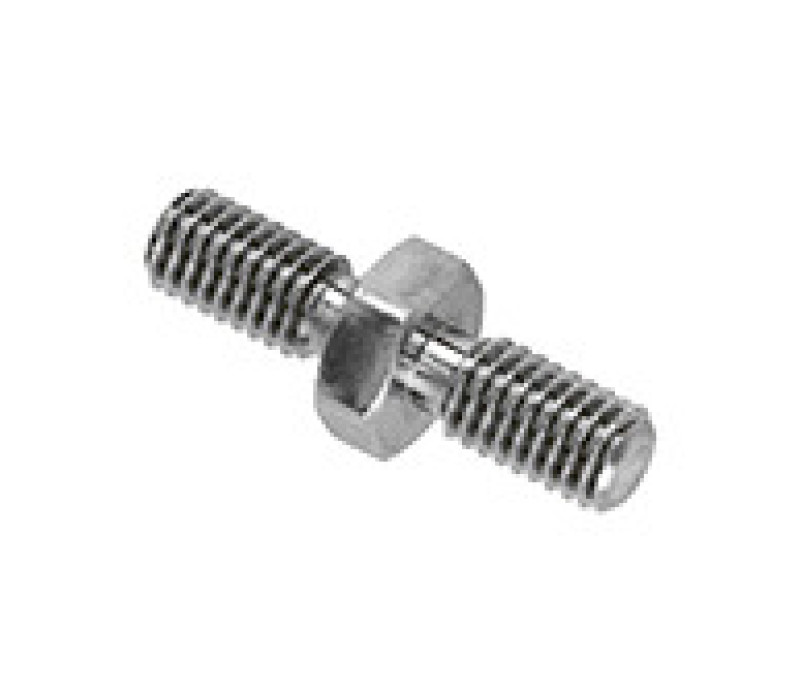

G1060 / 10-32M - 10-32M

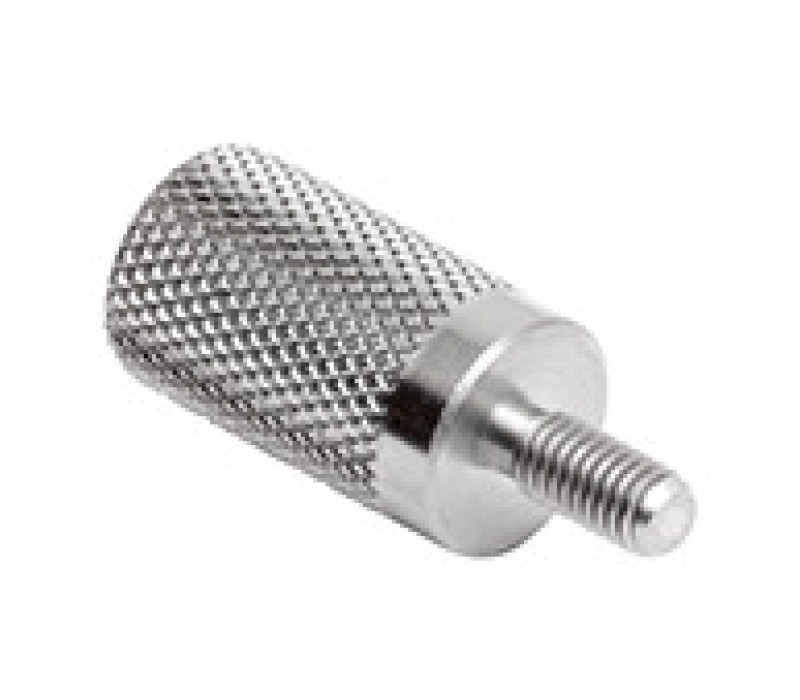

G1063 / 10-32M - 5/16-18F

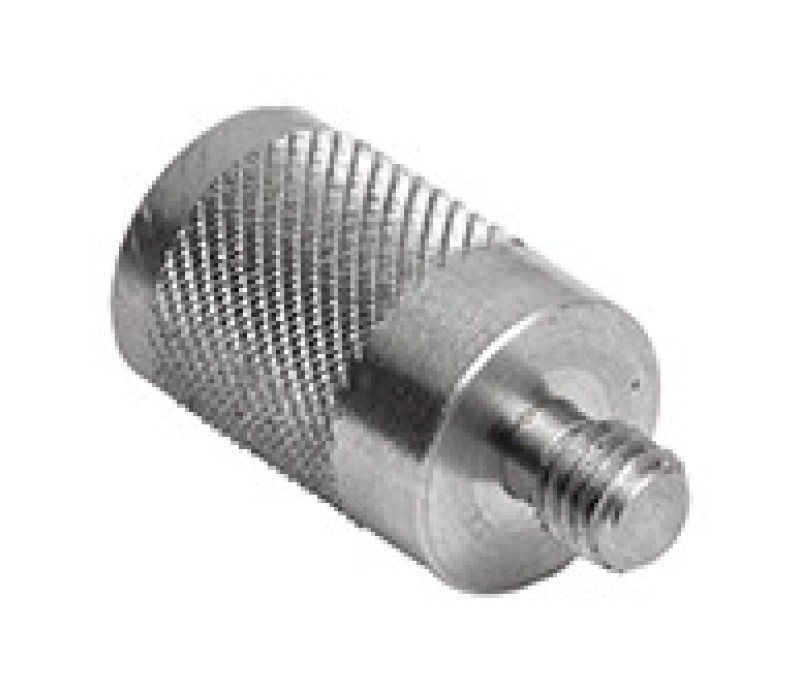

G1047 / 10-32M - M4F

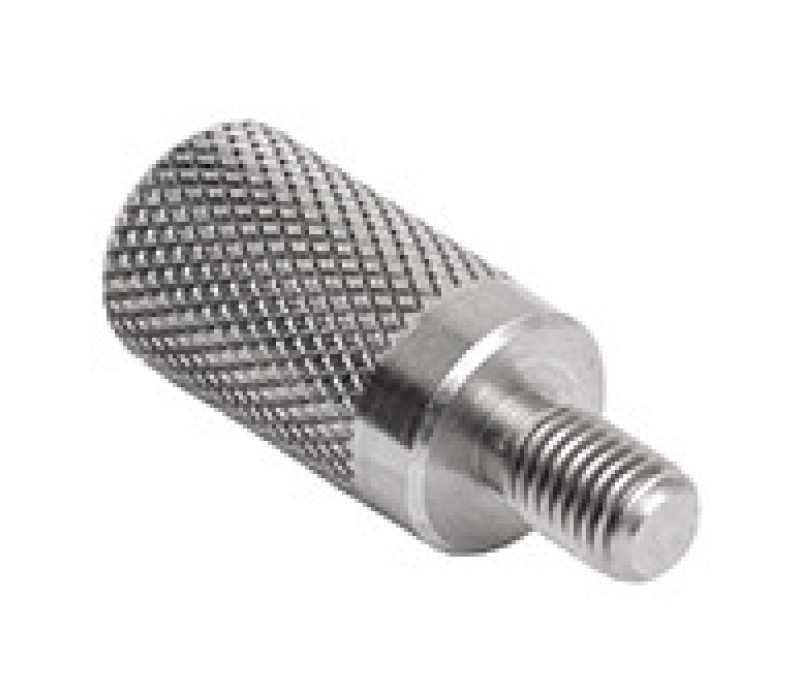

G1069 / 5/16-18F - 1/4-28M

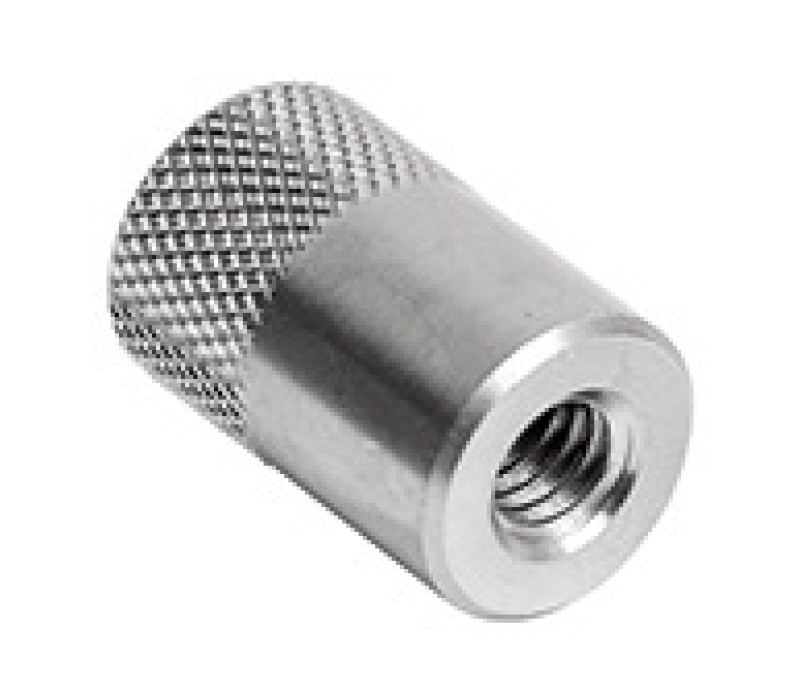

G1037 / 5/16-18F - 5/16-18F

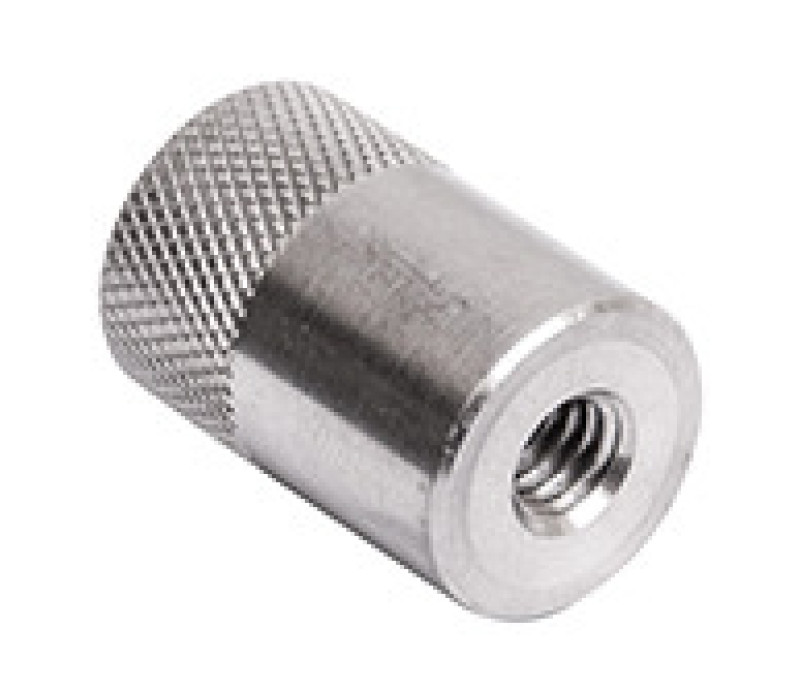

G1059 / 5/16-18F - 1/2-20F

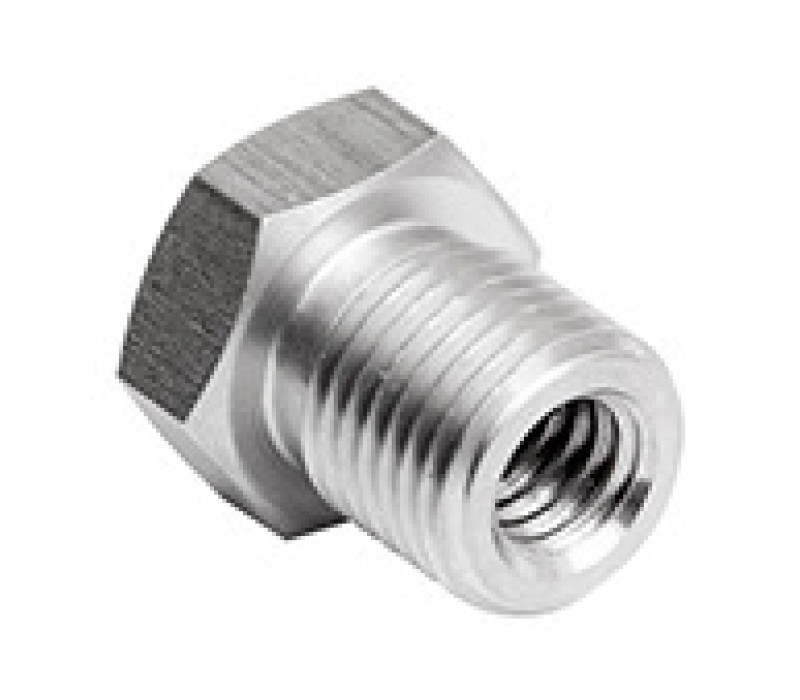

G1066 / 5/16-18F - 1/2-20M

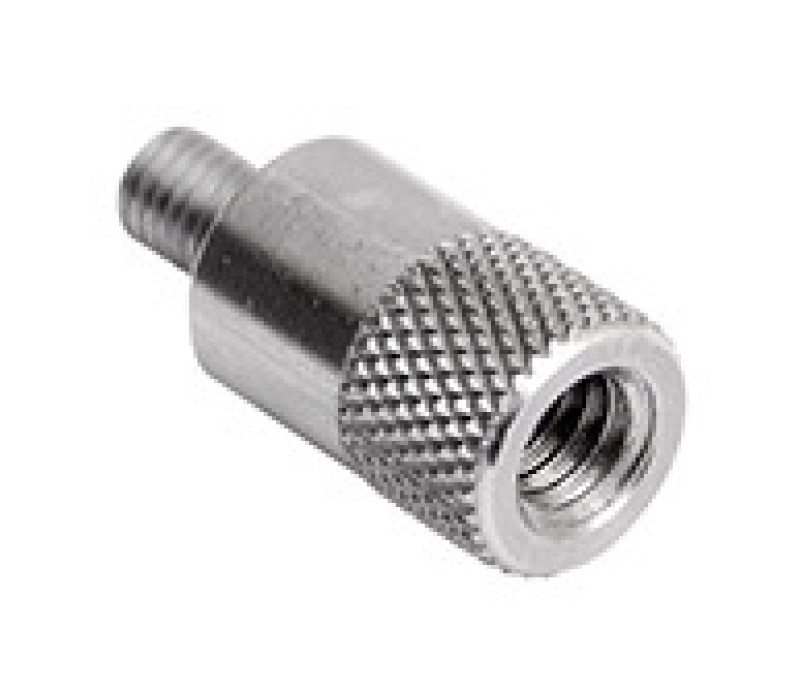

G1049 / 5/16-18F - M6M

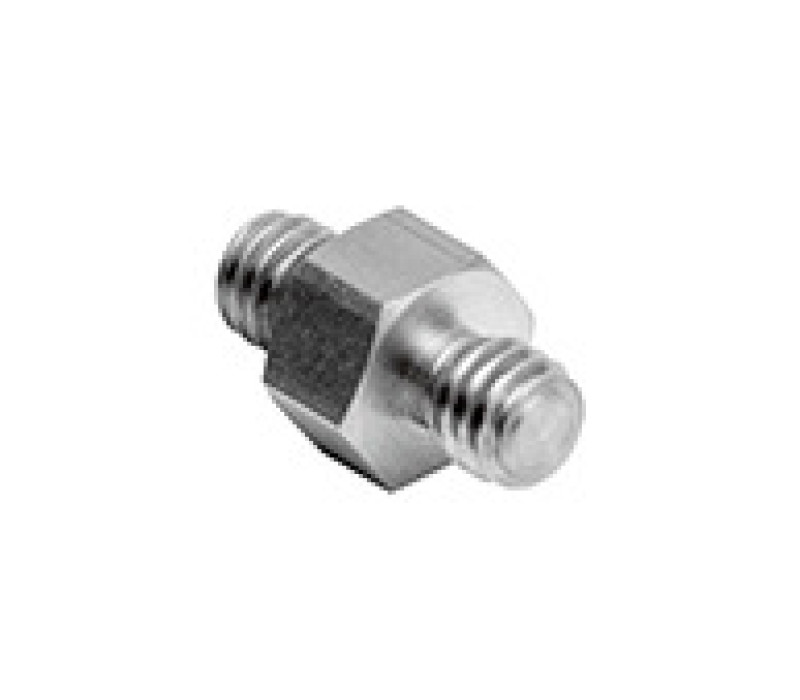

G1040 / 5/16-18M - 5/16-18M

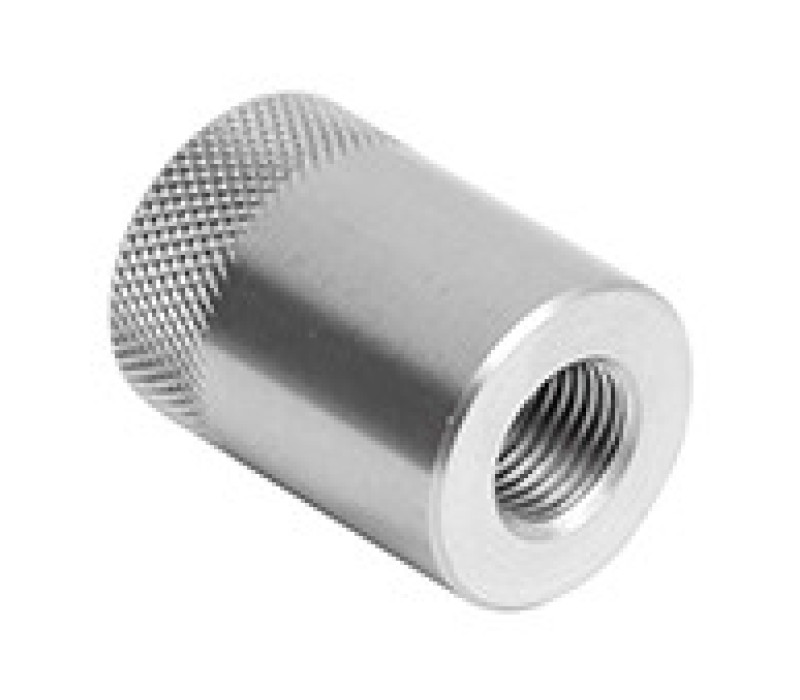

G1091 / 1/2-20F - 1/2-20F

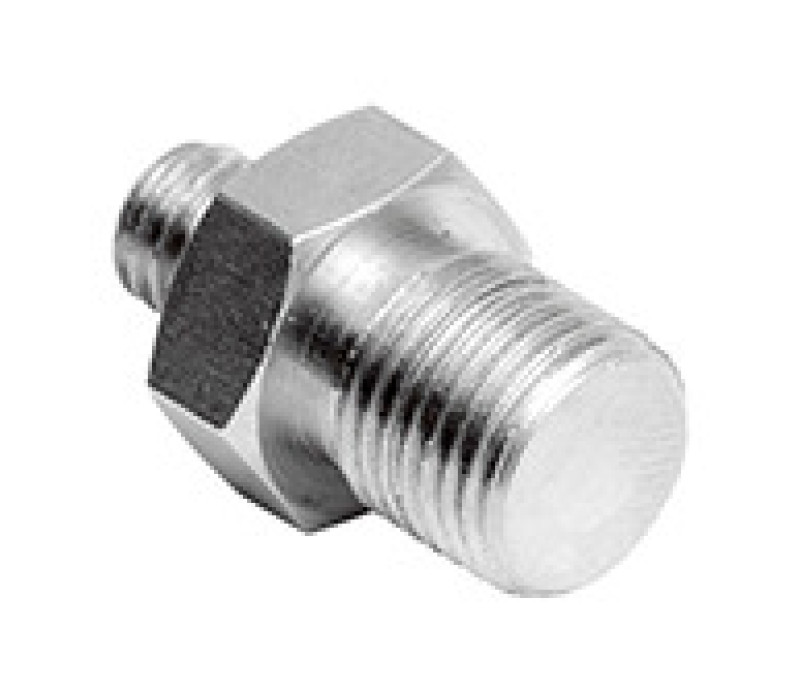

G1041 / 1/2-20M - 5/16-18M

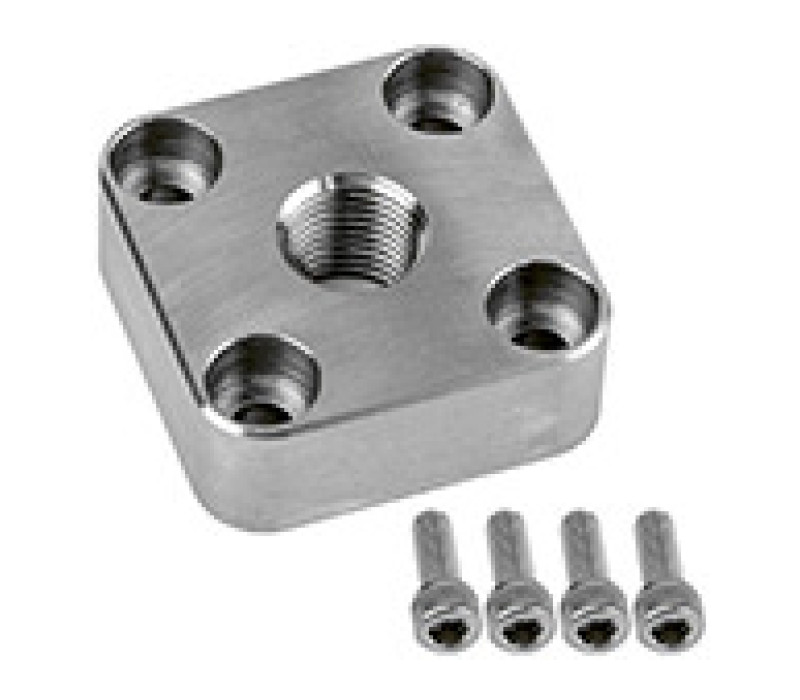

G1044 / Placa adaptadora, 1/2-20F - *Compatible con cualquier banco de pruebas Mark-10 con placa base de matriz de orificios roscados

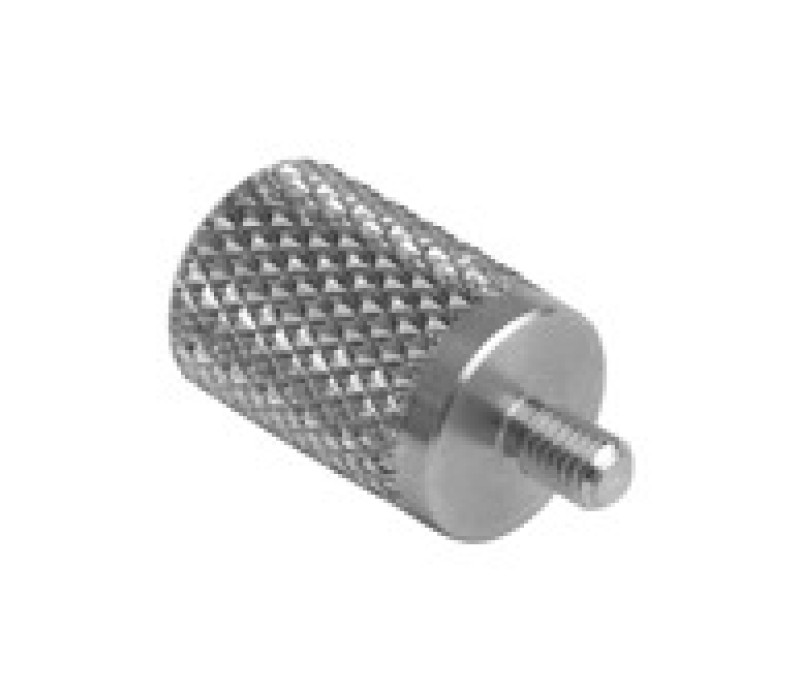

G1113 / M3M - 4-40F

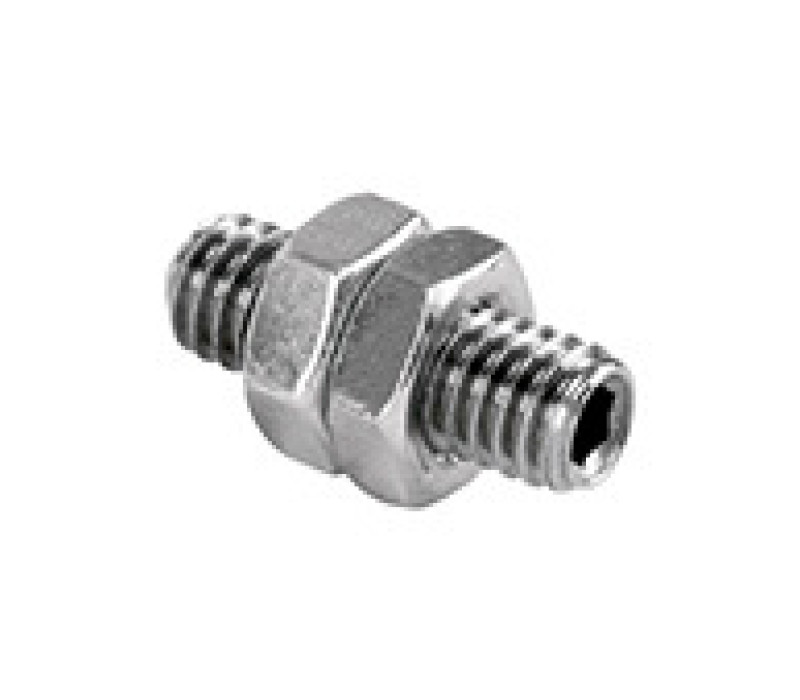

AC1082 / 10-32M - 10-32M

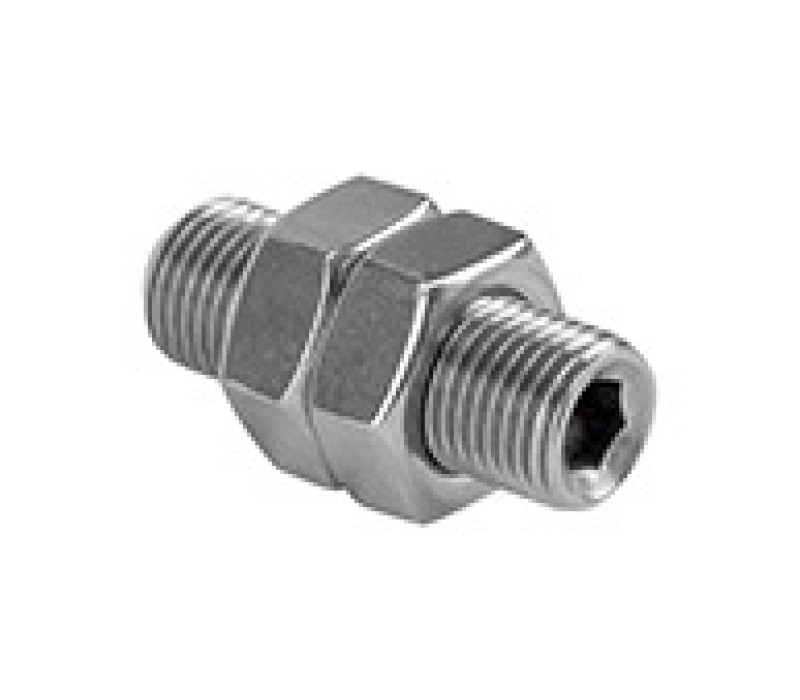

AC1082-1 / 5/16-18M - 5/16-18M

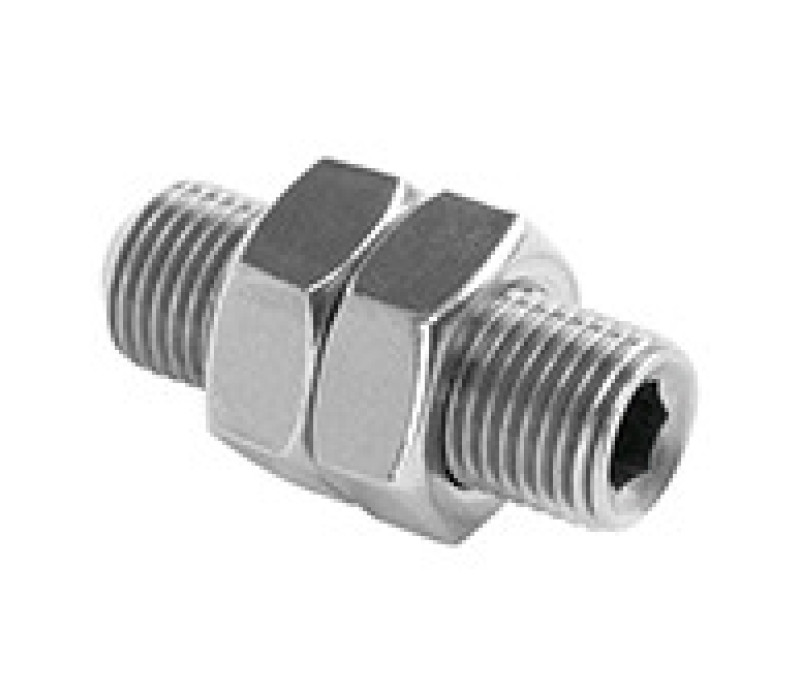

AC1082-2 / 1/2-20M - 1/2-20M
| Modelo | Capacidad lbF [N] |
Longitud en [mm] |
Rosca A | Rosca B | |||
|---|---|---|---|---|---|---|---|
 |
G1050 | 100 [500] | 0.75 [19.1] | #10-32F | #4-40M | ||
 |
G1051 | 100 [500] | 0.55 [14.0] | #4-40M | #10-32M | ||
 |
G1030 | 200 [1,000] | 0.50[12.7] | #10-32F | 5/16-18M | ||
 |
G1039 | 200 [1,000] | 0.75 [19.1] | #10-32F | #10-32F | ||
 |
G1067 | 200 [1,000] | 0.75 [19.1] | #10-32F | 1/2-20M | ||
 |
G1048 | 200 [1,000] | 0.75 [19.1] | #10-32F | M4M | ||
 |
G1057 | 200 [1,000] | 0.75 [19.1] | #10-32F | M6F | ||
 |
G1054 | 200 [1,000] | 0.75 [19.1] | #10-32F | M6M | ||
 |
G1060 | 200 [1,000] | 0.75 [19.1] | #10-32M | #10-32M | ||
 |
G1063 | 200 [1,000] | 1.30 [33.0] | #10-32M | 5/16-18F | ||
 |
G1047 | 200 [1,000] | 0.75 [19.1] | #10-32M | M4F | ||
 |
G1069 | 500 [2,500] | 1.25 [31.8] | 5/16-18F | 1/4-28M | ||
 |
G1037 | 500 [2,500] | 1.00 [25.4] | 5/16-18F | 5/16-18F | ||
 |
G1059 | 500 [2,500] | 1.13 [28.7] | 5/16-18F | 1/2-20F | ||
 |
G1066 | 500 [2,500] | 0.75 [19.1] | 5/16-18F | 1/2-20M | ||
 |
G1049 | 500 [2,500] | 1.25 [31.8] | 5/16-18F | M6M | ||
 |
G1040 | 500 [2,500] | 0.92 [23.4] | 5/16-18M | 5/16-18M | ||
 |
G1041 | 500 [2,500] | 1.06 [26.9] |
|
5/16-18M | ||
 |
G1091 | 1,000 [5,000] | 1.30 [33.0] | 1/2-20F | 1/2-20F | ||
 |
G1044* | Adapter plate, 1/2-20F* | |||||
 |
G1113 | 100 [500] | 0.75 [19.1] | M3M | #4-40F | ||
 |
AC1082 | 100 [500] | 0.75 [19.1] | #10-32M | #10-32M | ||
 |
AC1082-1 | 500 [2,500] | 1.00 [25.4] | 5/16-18M | 5/16-18M | ||
 |
AC1082-2 | 2,000 [9,000] | 1.50 [38.1] | 1/2-20M | 1/2-20M | ||
* Compatible con cualquier banco de pruebas con una placa base de matriz de agujeros roscados, como TSF, ESM303, etc.
